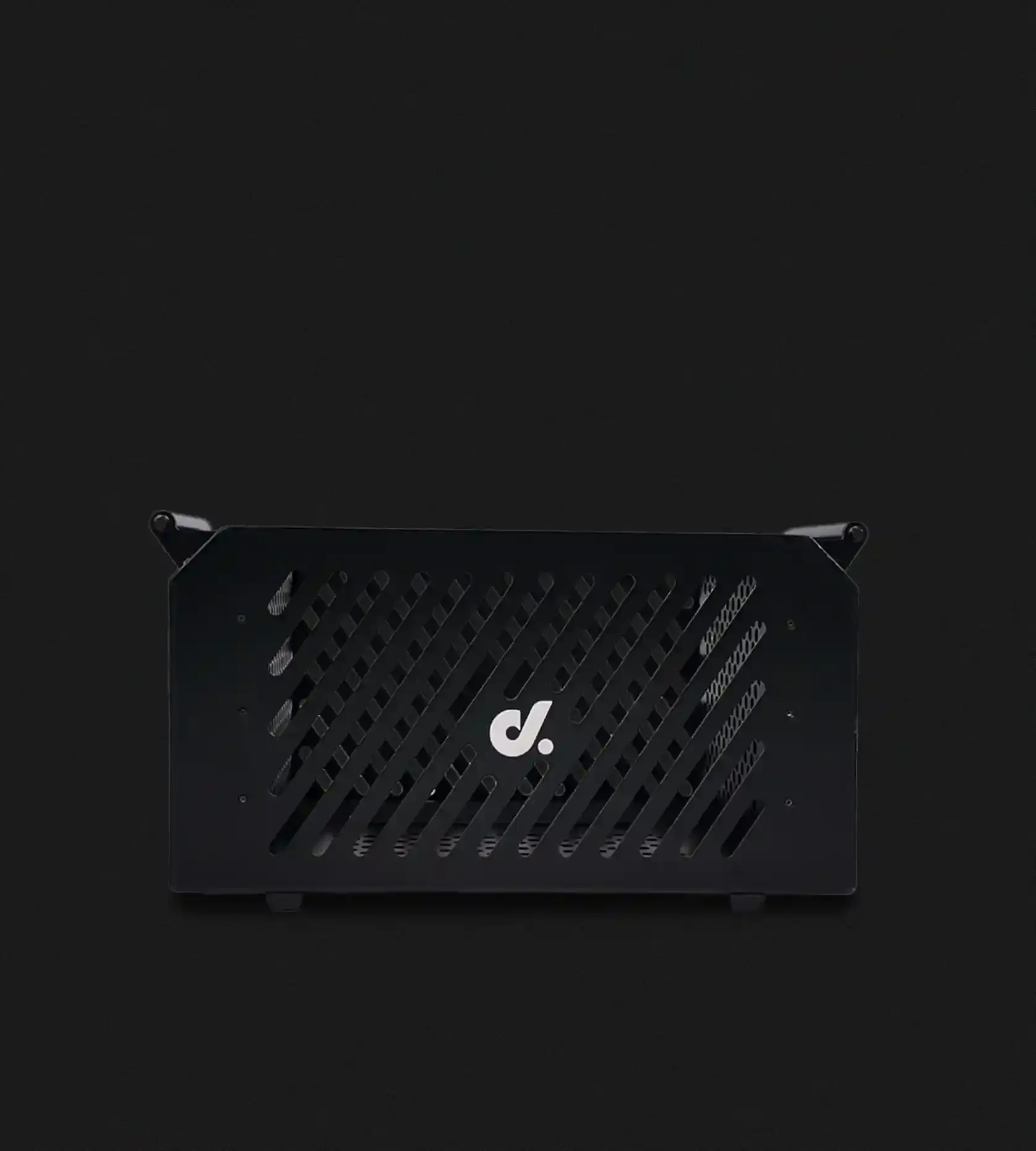

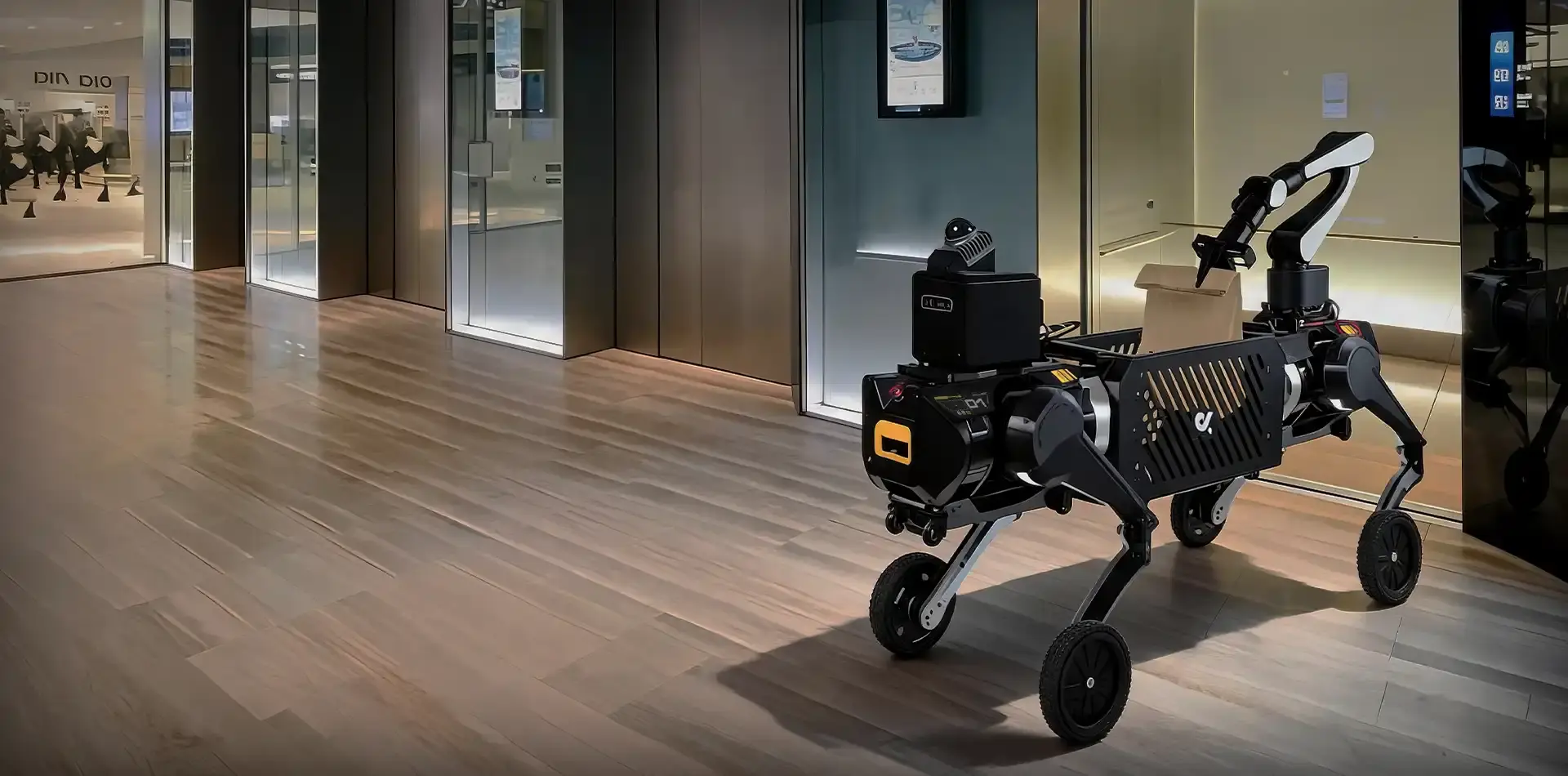

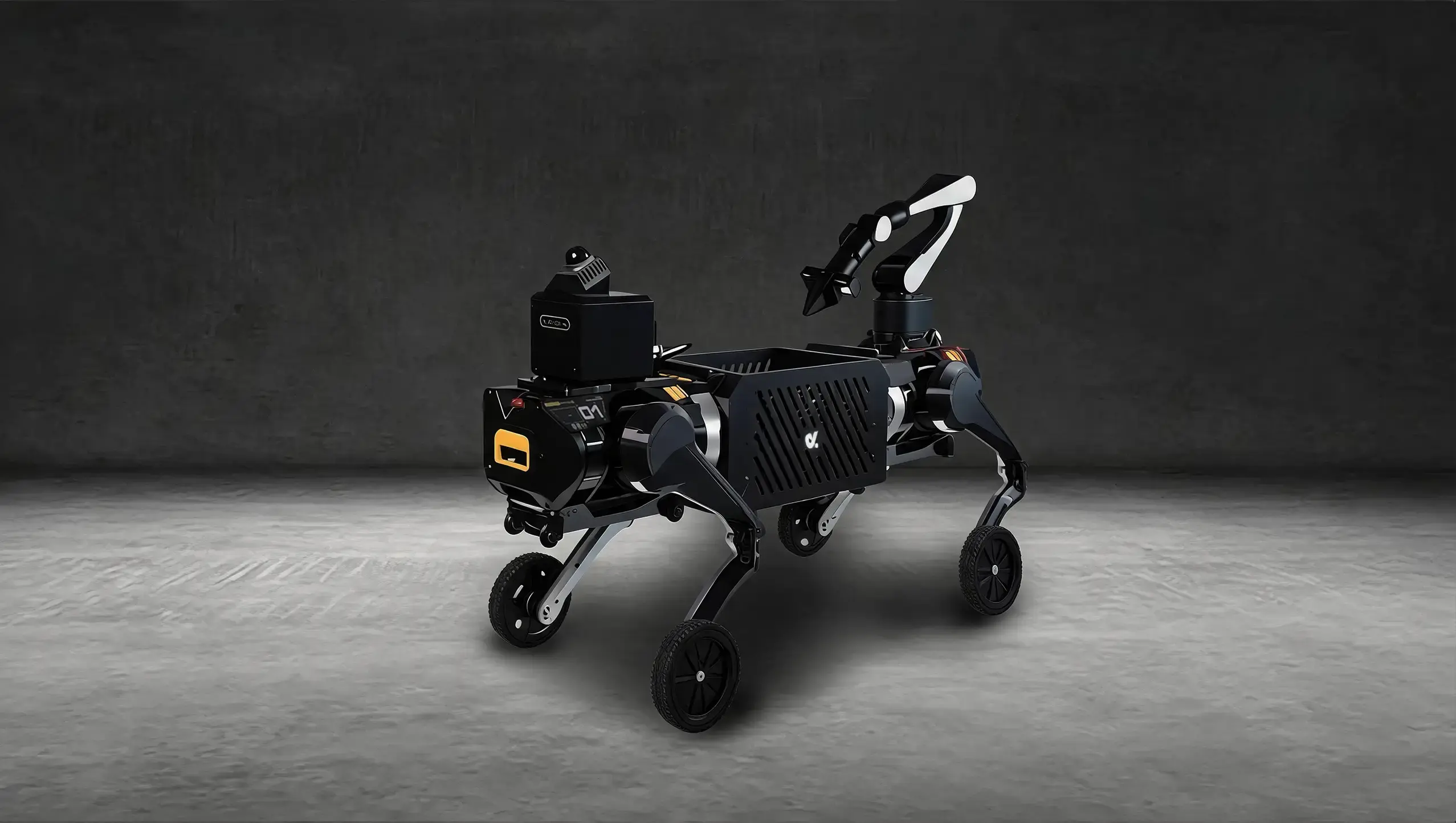

D1-SET BOX 1.0
Features the same standardized quick-release interface as D1, docking directly with the D1 body via the docking mechanism.
Body Extension

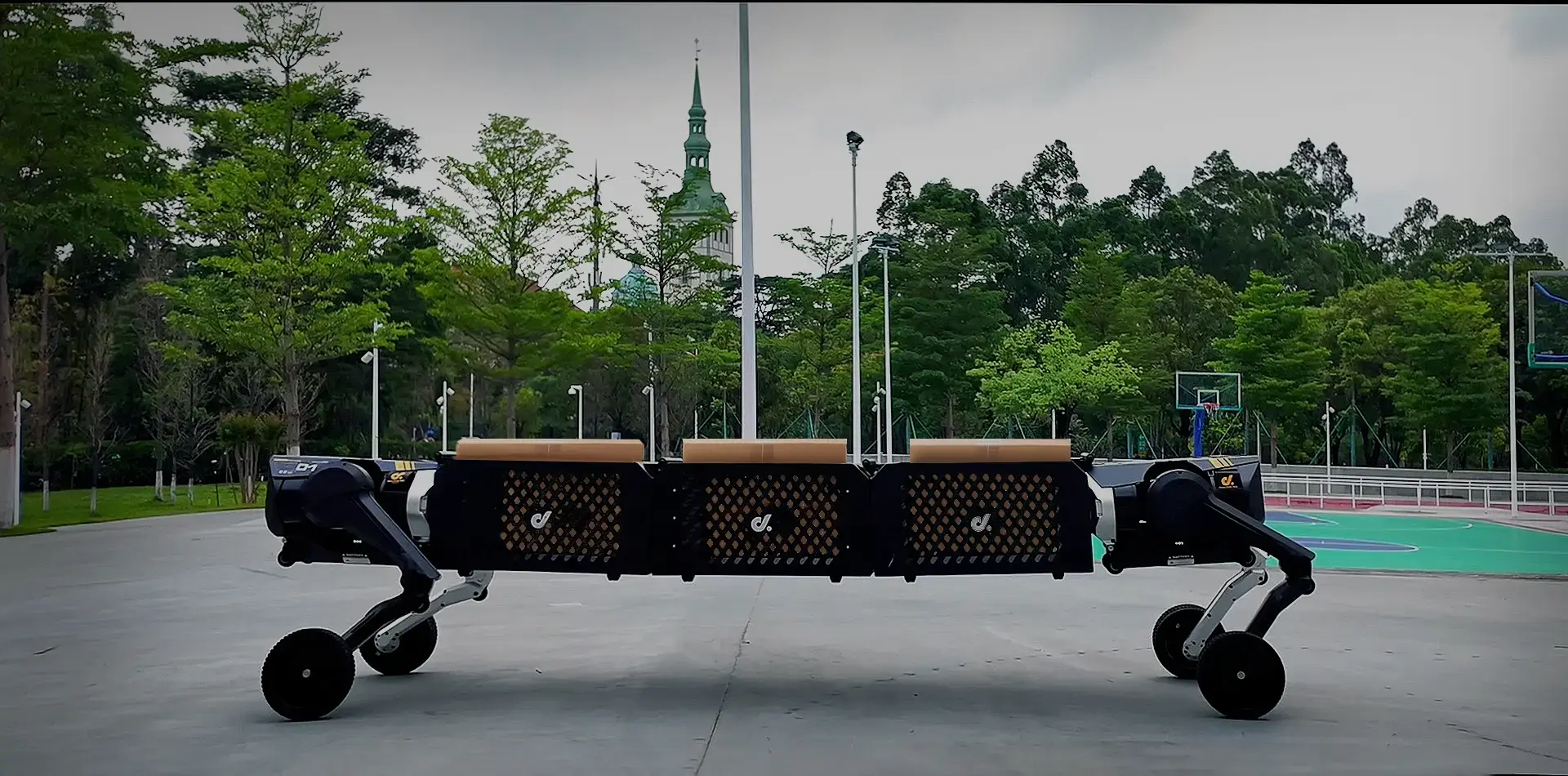

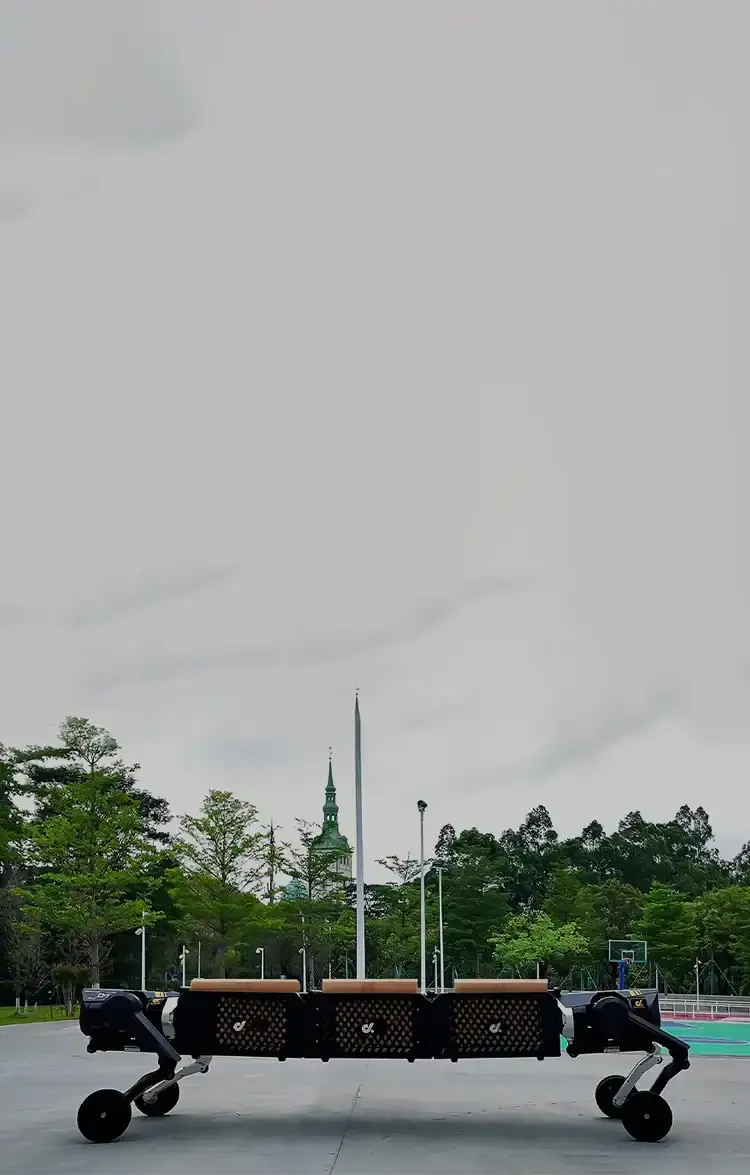

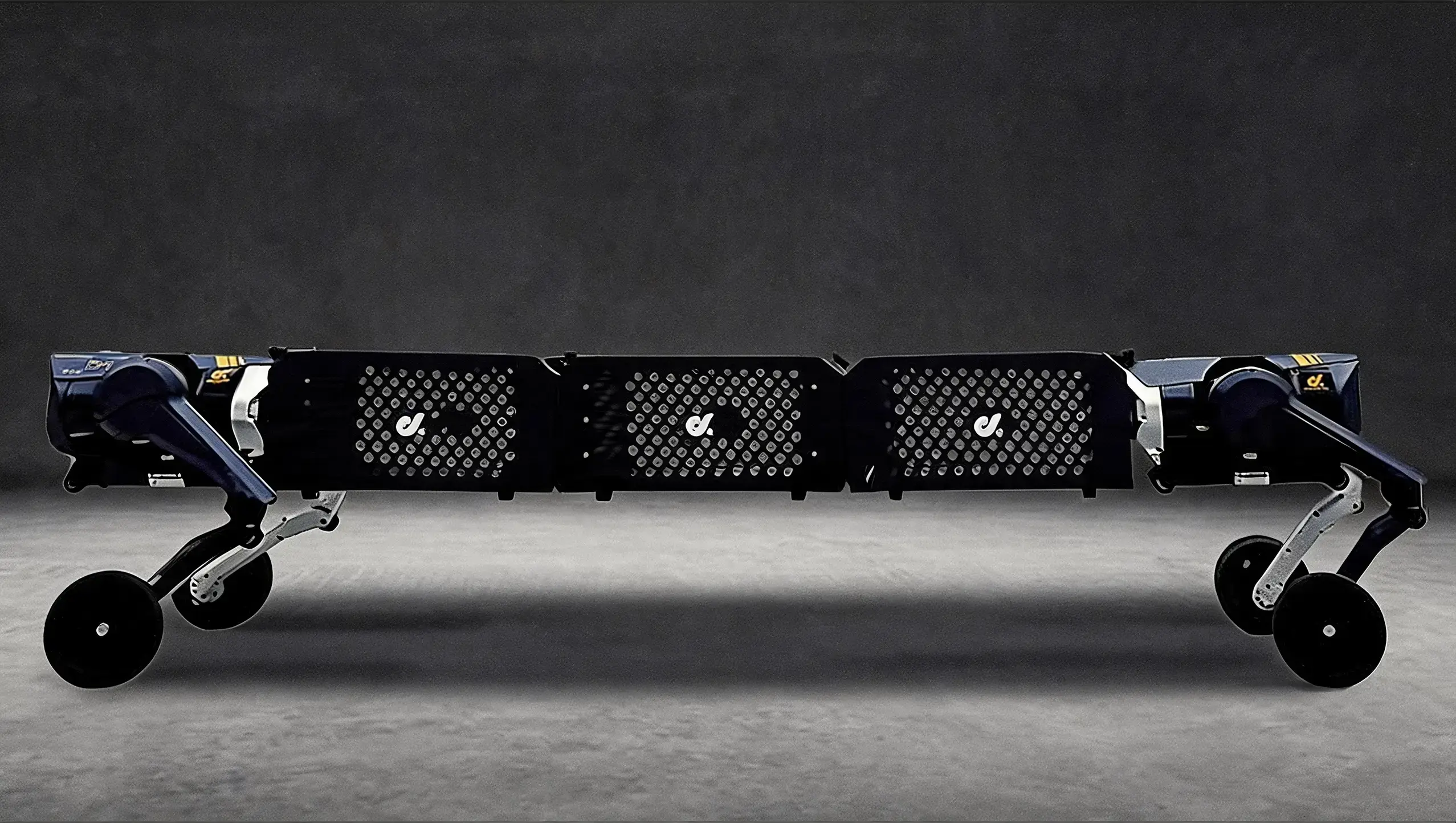

Radial space extension is achieved through the standardized docking mechanism at the mid-body section, significantly expanding the robot's central payload area and capacity. Without altering the overall profile height of the robot, this design provides a customizable horizontal mounting platform.
Hassle-Free Loading & Unloading

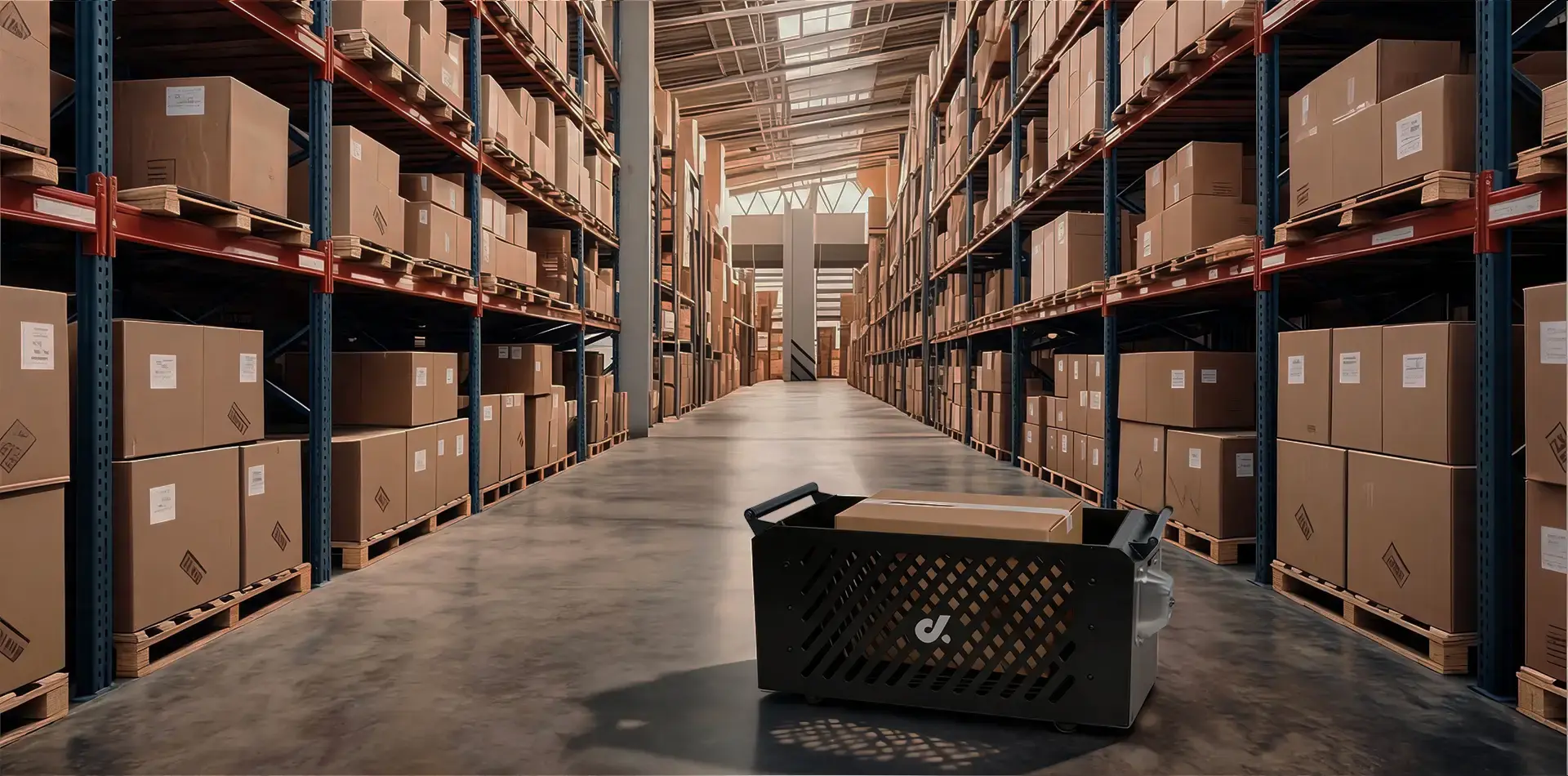

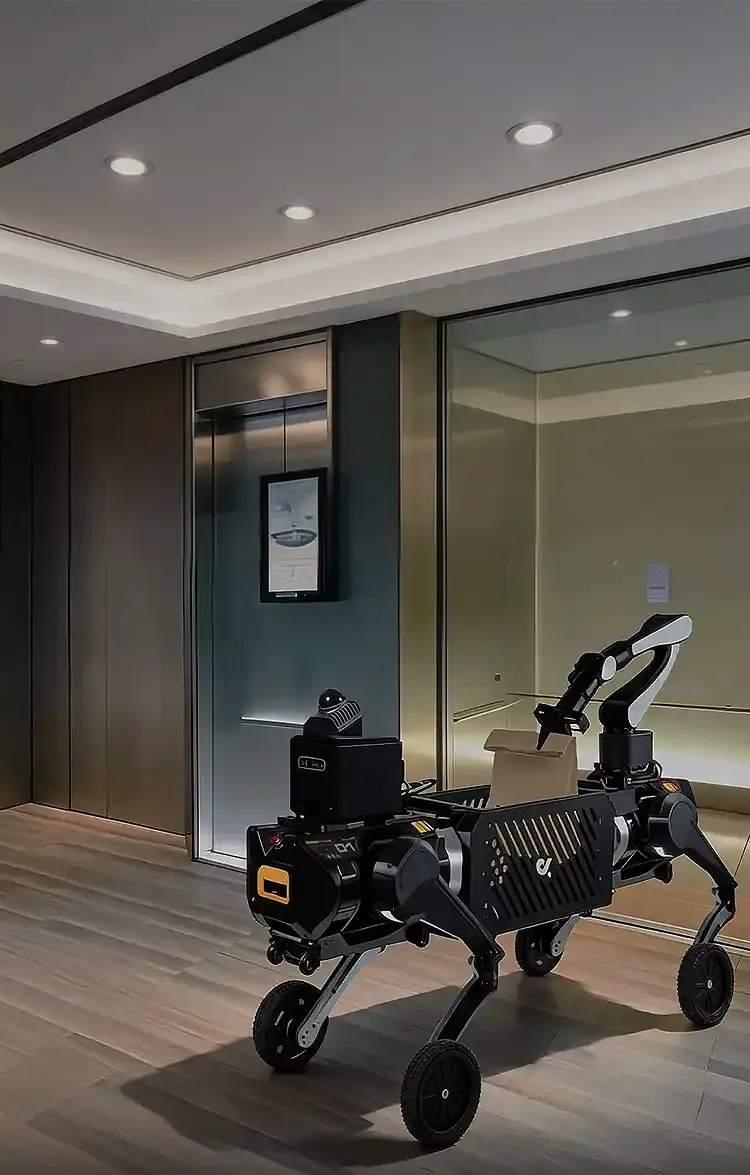

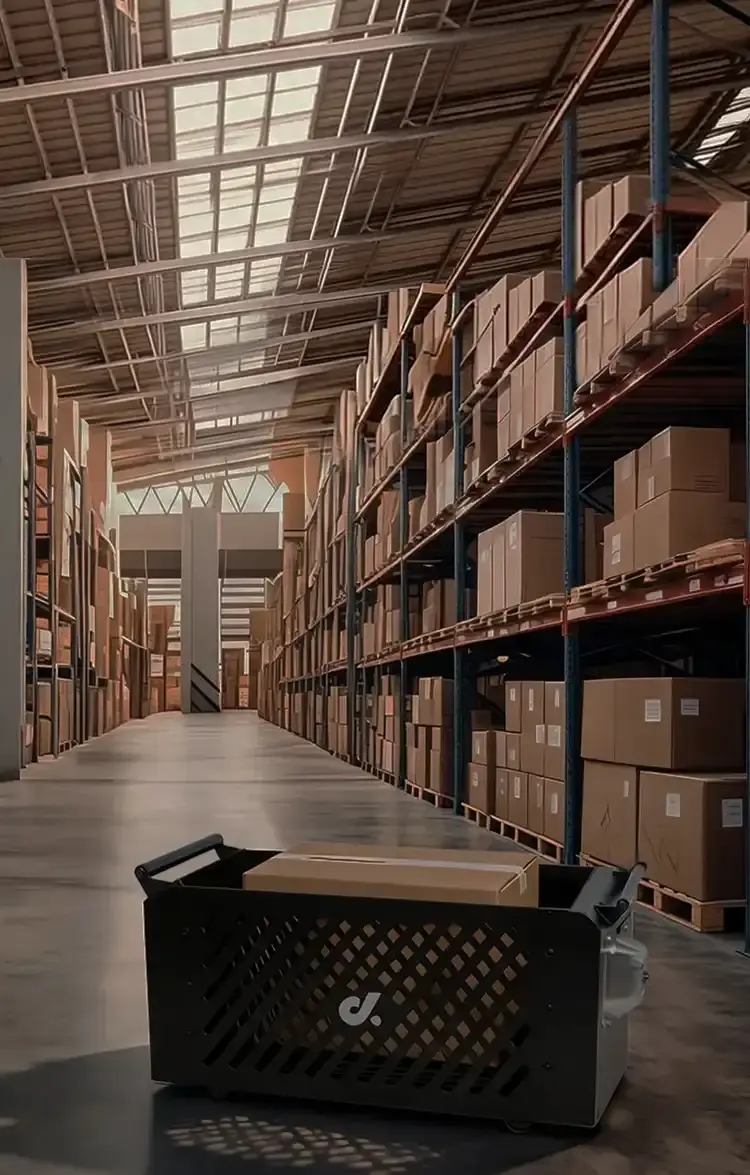

The cargo box can autonomously attach and release with zero external actuators required, achieving an unmanned logistics loop with true "Drop-and-Go" efficiency.
Vertical Expansion

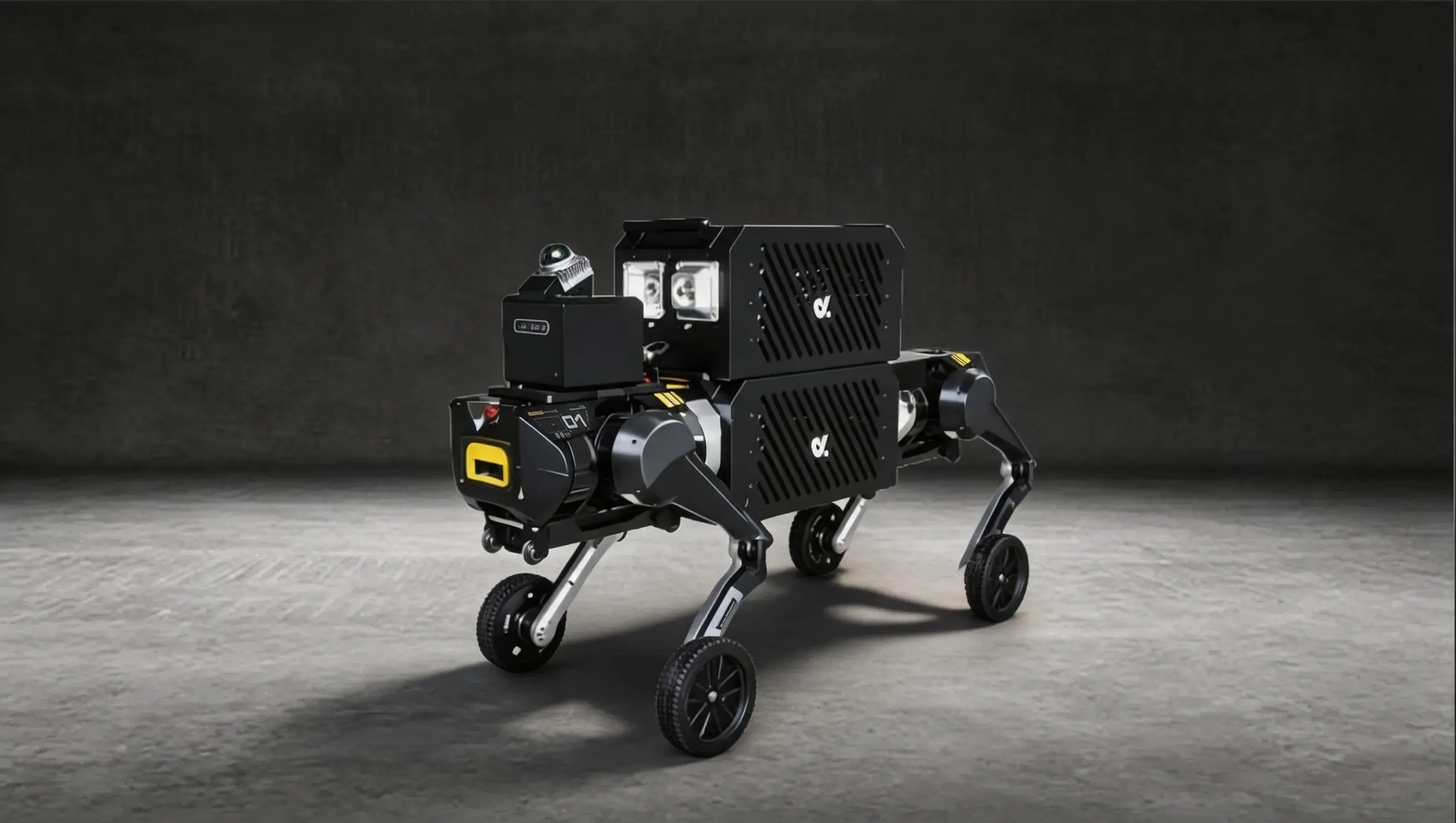

Supports multi-box stacking along the body's longitudinal axis, allowing multiple D1-Set BOX1 units to be stacked vertically at the mid-body mounting position.
Product Specifications



Parameter Value
Features & Specifications
Dimensions

Outer: 542.2 x 275 x 254.27 mm

Inner: 347.95 x 272.5 x 252.02 mm

(Wall thickness: 2.5 mm)

Weight Approx. 5.9 kg
Payload Approx. 15 kg per unit
Battery 43.2 V / 9 Ah (453.6 Wh) per unit
External Interfaces USB Type-C x2, Gigabit Ethernet port x1, battery port x1
Remote Power-Off Yes
Runtime Approx. 3 h (active mode)
Number of Docking Mechanisms 2
Fixed Connection Between Components Yes
Charging Adapter 24 V
Optional
Active (Powered) Version Optional
OTA Updates Optional
Large Wheel Accessory Continuous upgrades



Please Click Below To Inquire For Details
