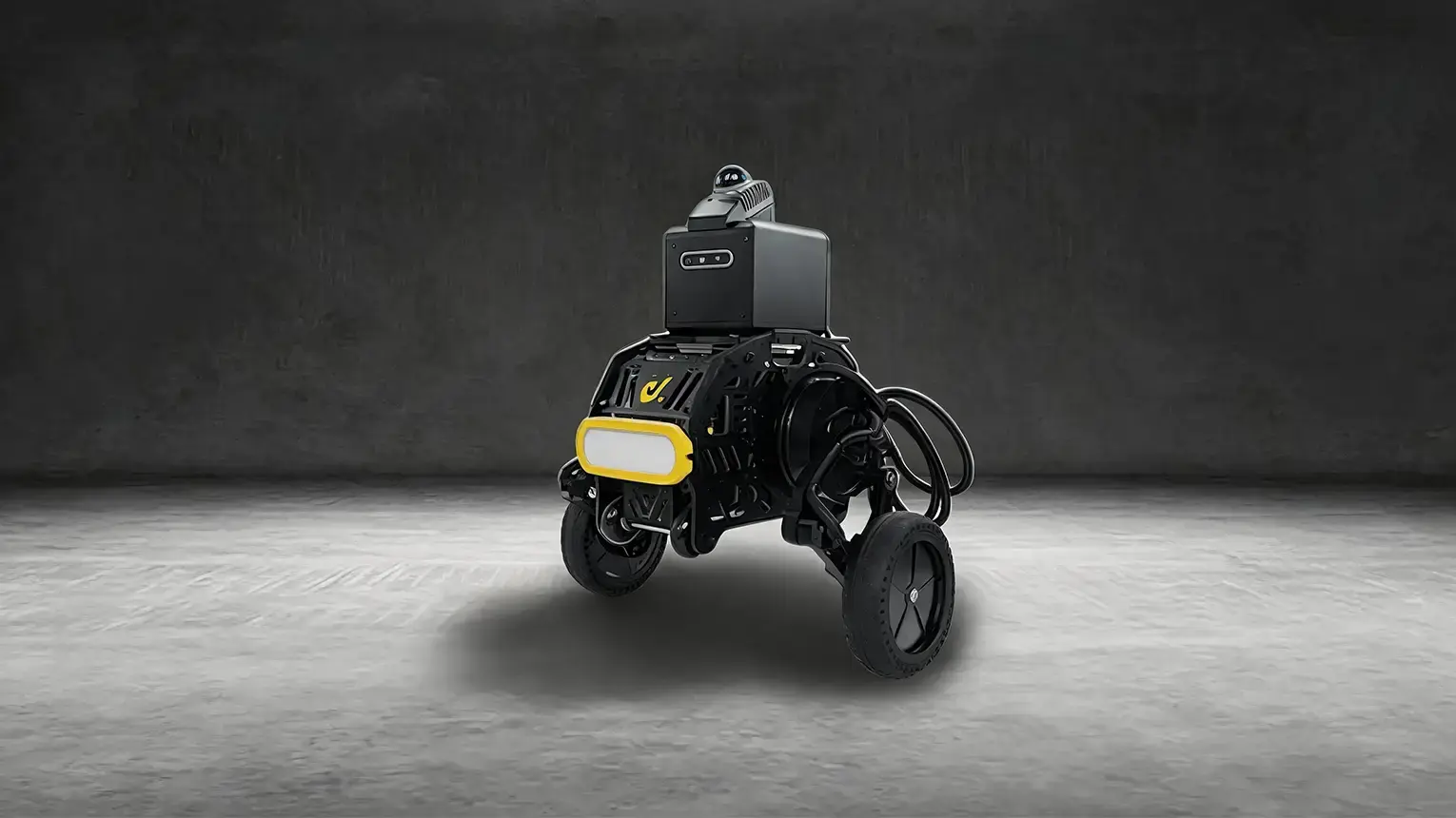

About Diablo

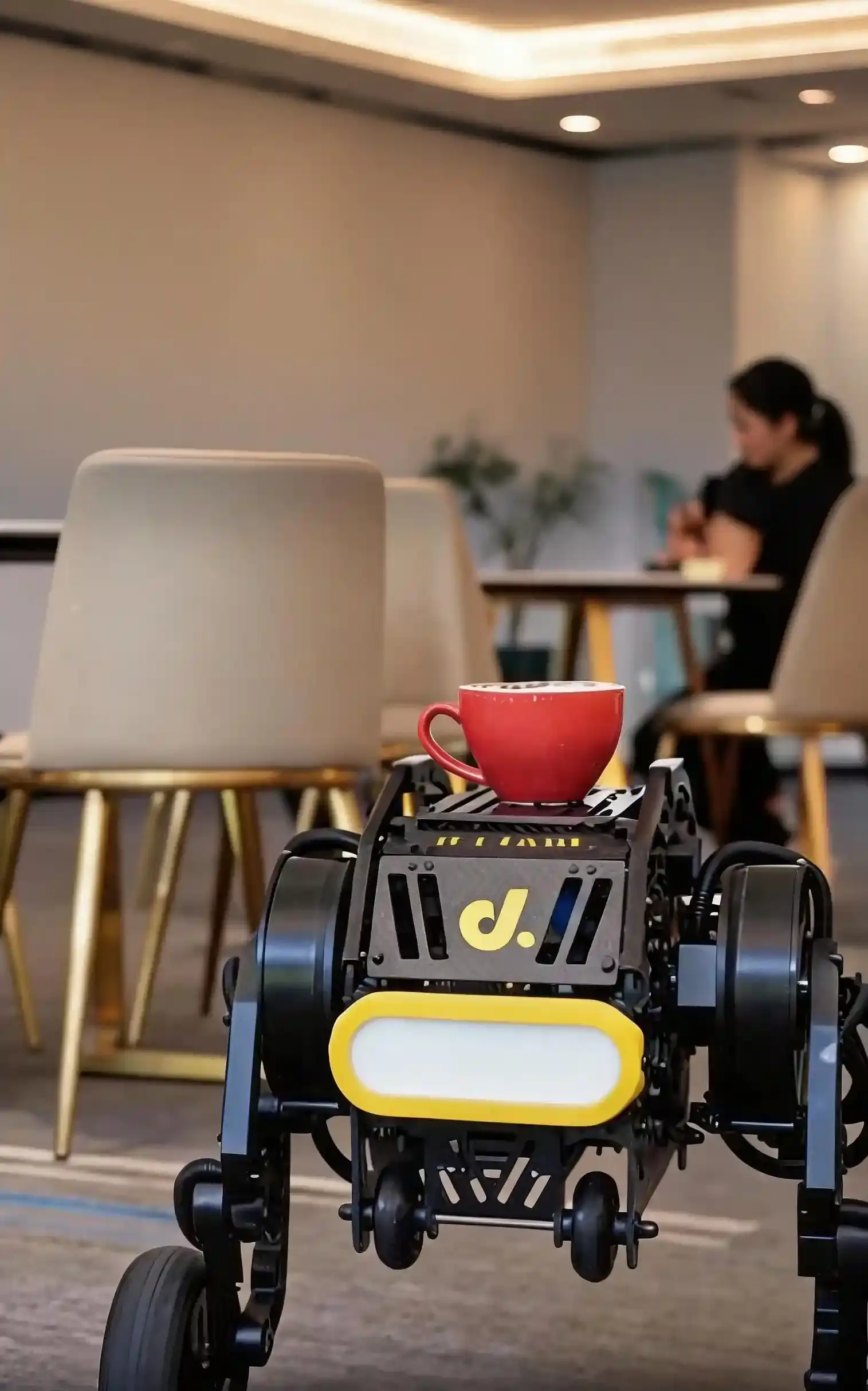

Diablo combines the speed advantage of AGVs with the mobility and obstacle-crossing capability of legged robots — blending the agility of legged machines with the stability and swiftness of wheeled ones — enabling efficient, agile movement across diverse terrains.Its open development ecosystem also provides perfect interfaces for applications of every kind. Whether you need quiet companionship, discreet patrol, agile passage, or smooth transport, Diablo is an ideal platform.
Easier Maintenance

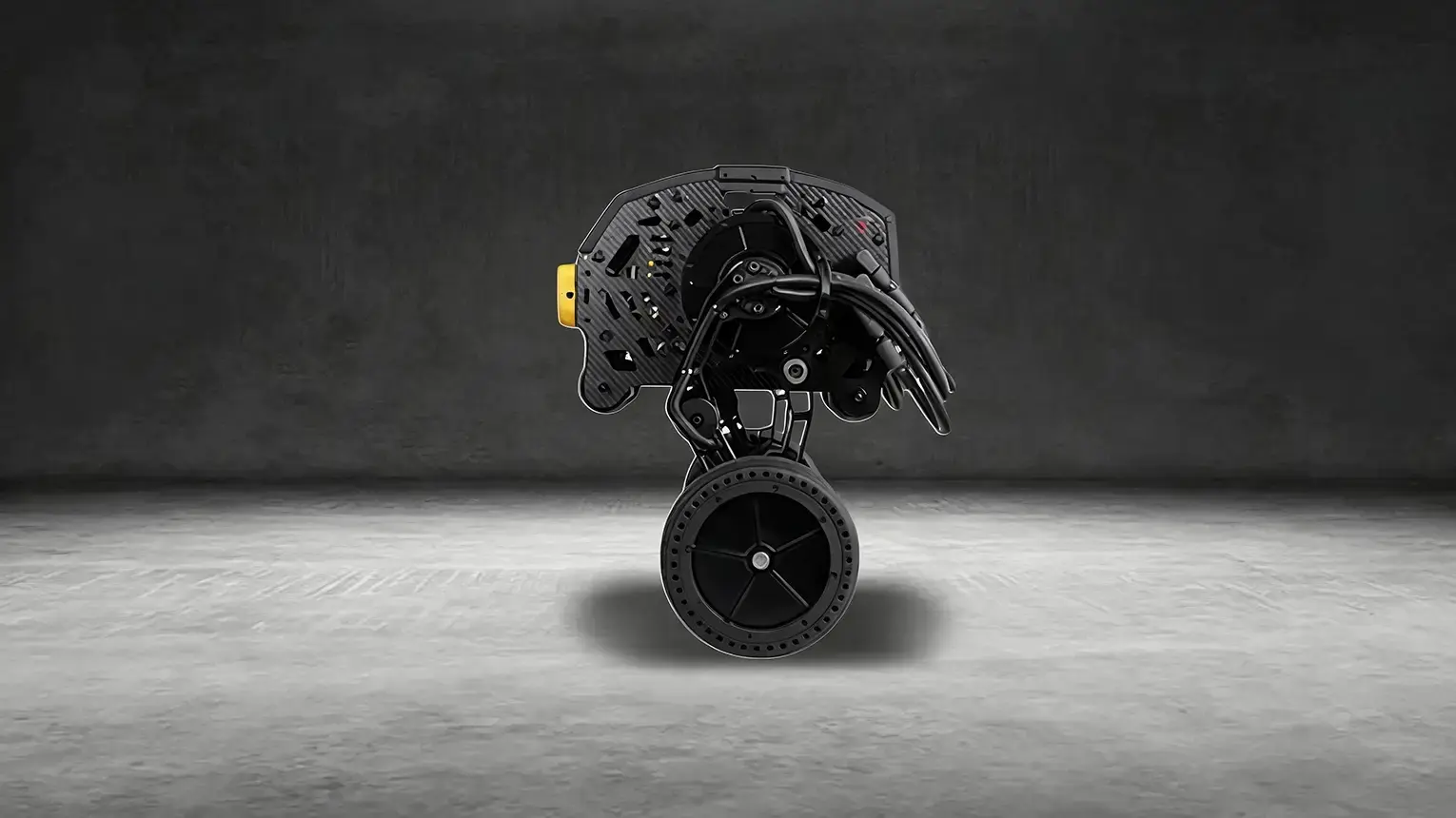

With no transmission structure to wear out, direct-drive solutions last longer and deliver more stable, reliable performance. The flange-connection design also makes equipment maintenance and repair simple and easy.
.webp)
Higher Efficiency
Likewise, with no friction from transmission mechanisms, direct-drive solutions convert electrical energy far more efficiently — delivering up to 30% longer runtime. Equipment spends more time working and less time returning to charge, dramatically accelerating cost recovery.
.webp)

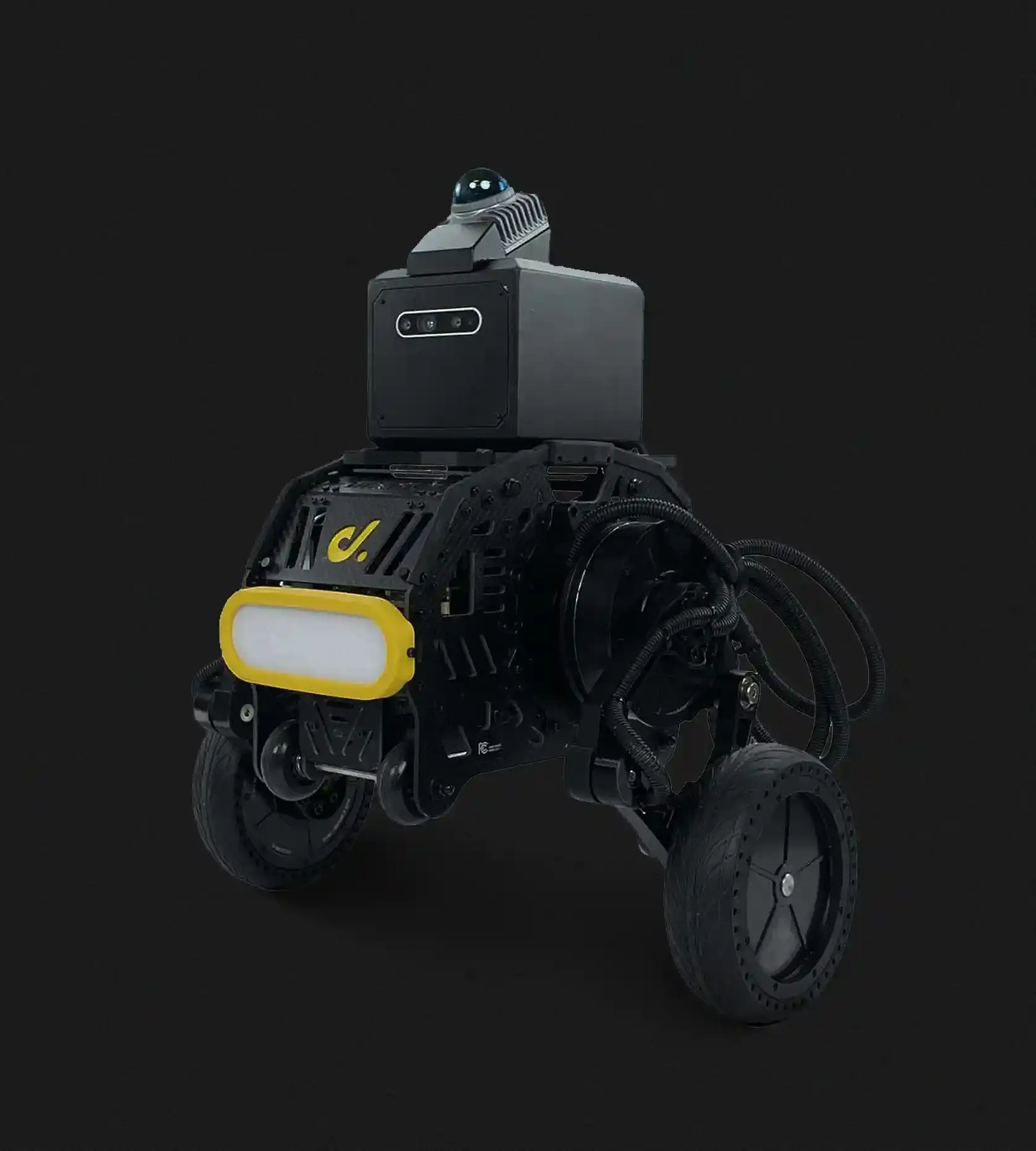

Better Development Efficiency

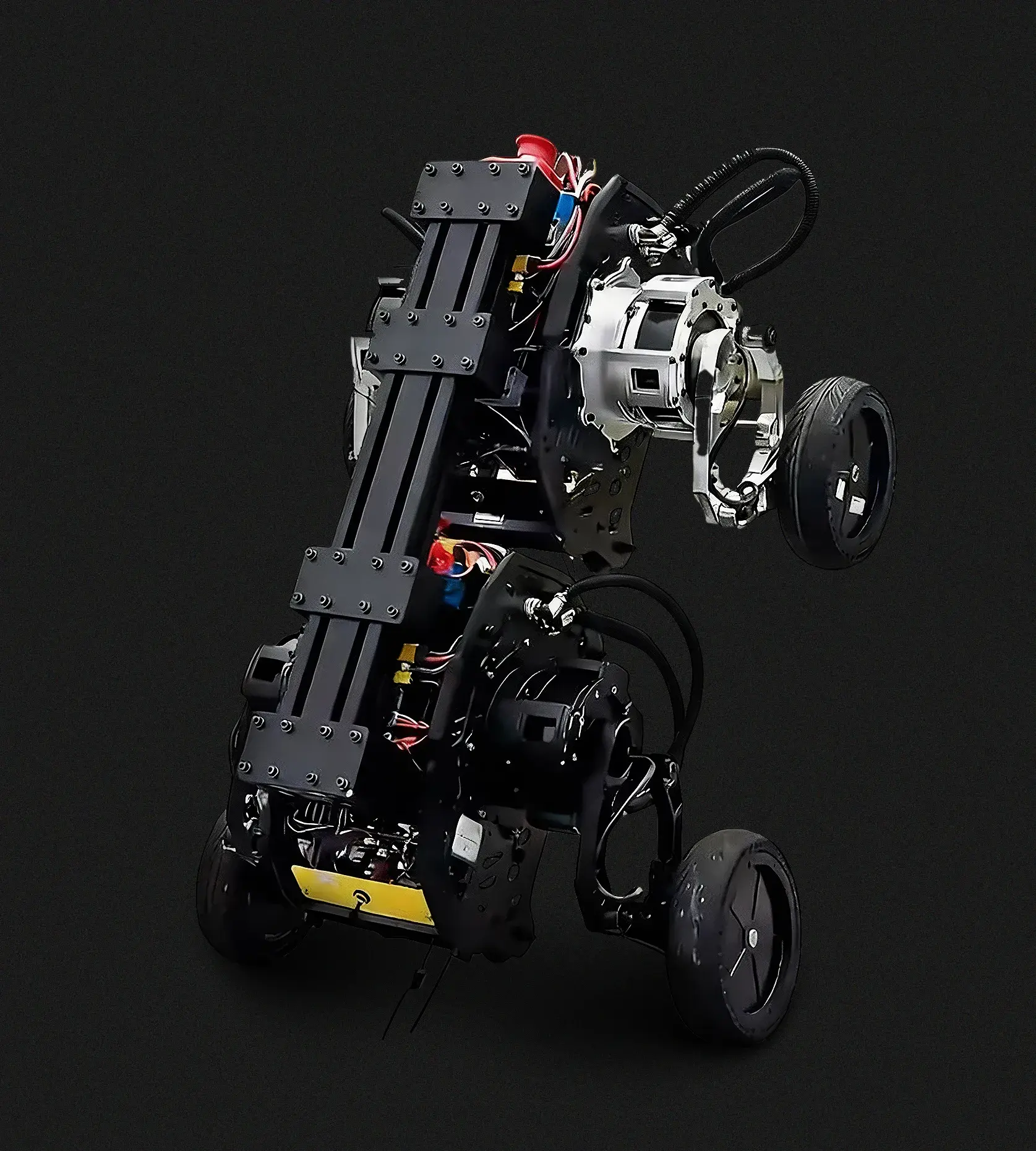

Modular design makes product and solution development far more efficient, shortening wheeled-robot chassis design cycles by at least 20%. It rises to the challenge of even the most complex requirements, giving enterprises far more breathing room in their R&D timelines.
.webp)
.webp)
.webp)
Product Specifications
| Parameter | Value |
| Features & Specifications | |
| Standing Dimensions | 540×371×491mm |

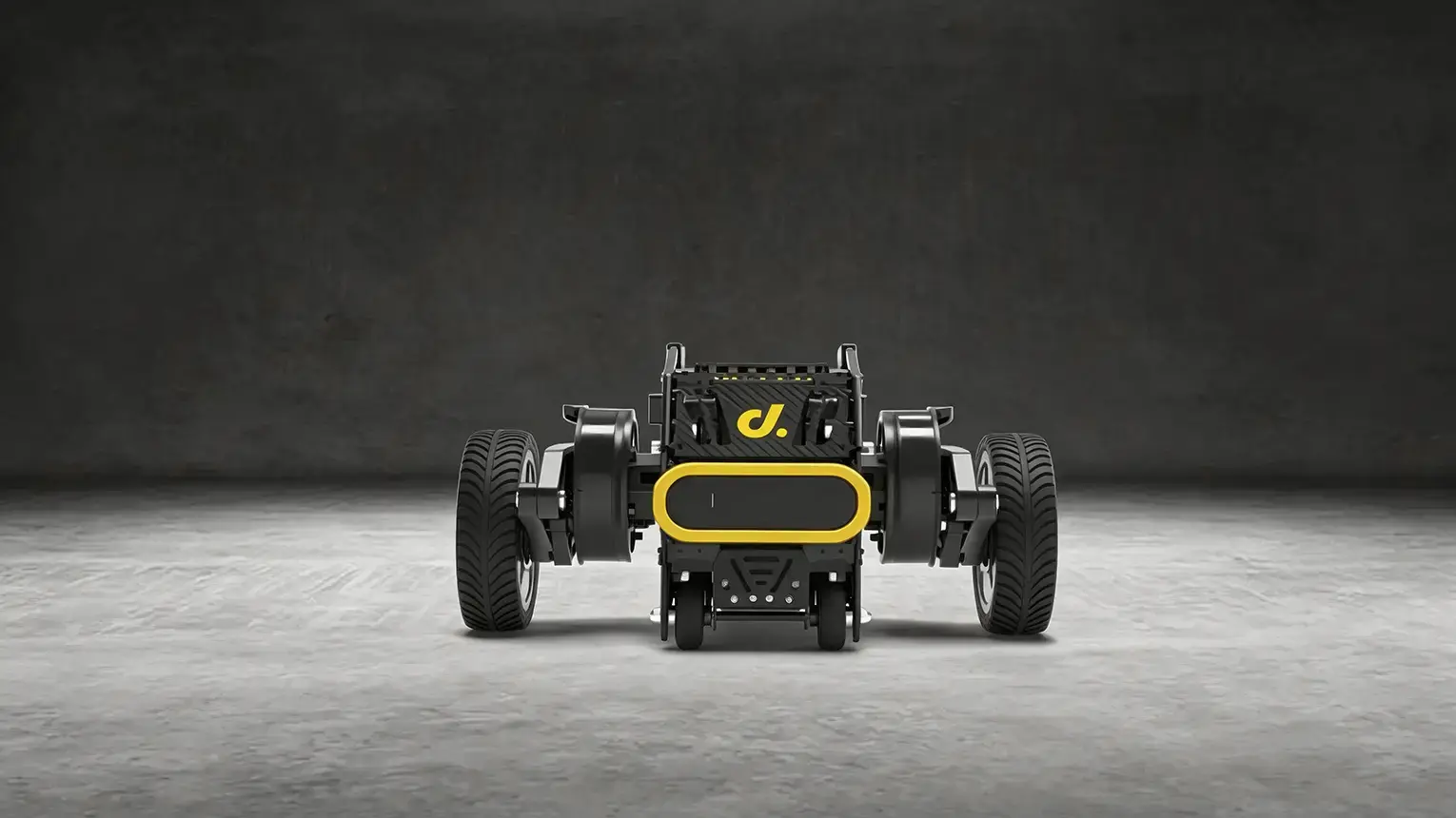

| Crouched Dimensions | 540×371×270mm |
| Material | Aluminum Alloy + High-Strength Engineering Plastic |
| Weight (incl. docking mechanism) | 22.9kg |
| Processor | RaspberryPi4ModelB |
| Degrees of Freedom (DOF) | 6 |
| Battery Specifications | 0.178 kwh，220V，235.2W |
| Runtime | ≈1.5h |
| Standard Charging Time | ≈1h |
| Payload (Crouched Mode) | 80kg |
| Payload (Standing Mode) | 4kg |
| Max Continuous Speed | 2m/s |
| Jump Height | 80mm |
| Operating System | Ubuntu20.04 |
| Power-Failure Protection | Supported |
| OTA Updates | Supported |
| Optional | |
| Navigation Tower Accessories | Continuous Upgrades |
